Z-Offset did not calibrate properly


Make sure your BuildBee is running the latest version.
If you are still experiencing issues with your Z-Offset being too high/low even after calibrating it, something may have gone wrong during the calibration process. While it is an uncommon occurrence, it can be quite confusing when you test your new calibration and find that you still need to fine-tune it.


Step 1 - Confirm the problem

- Access your printer list from the top right hand corner of the BuildBee interface.

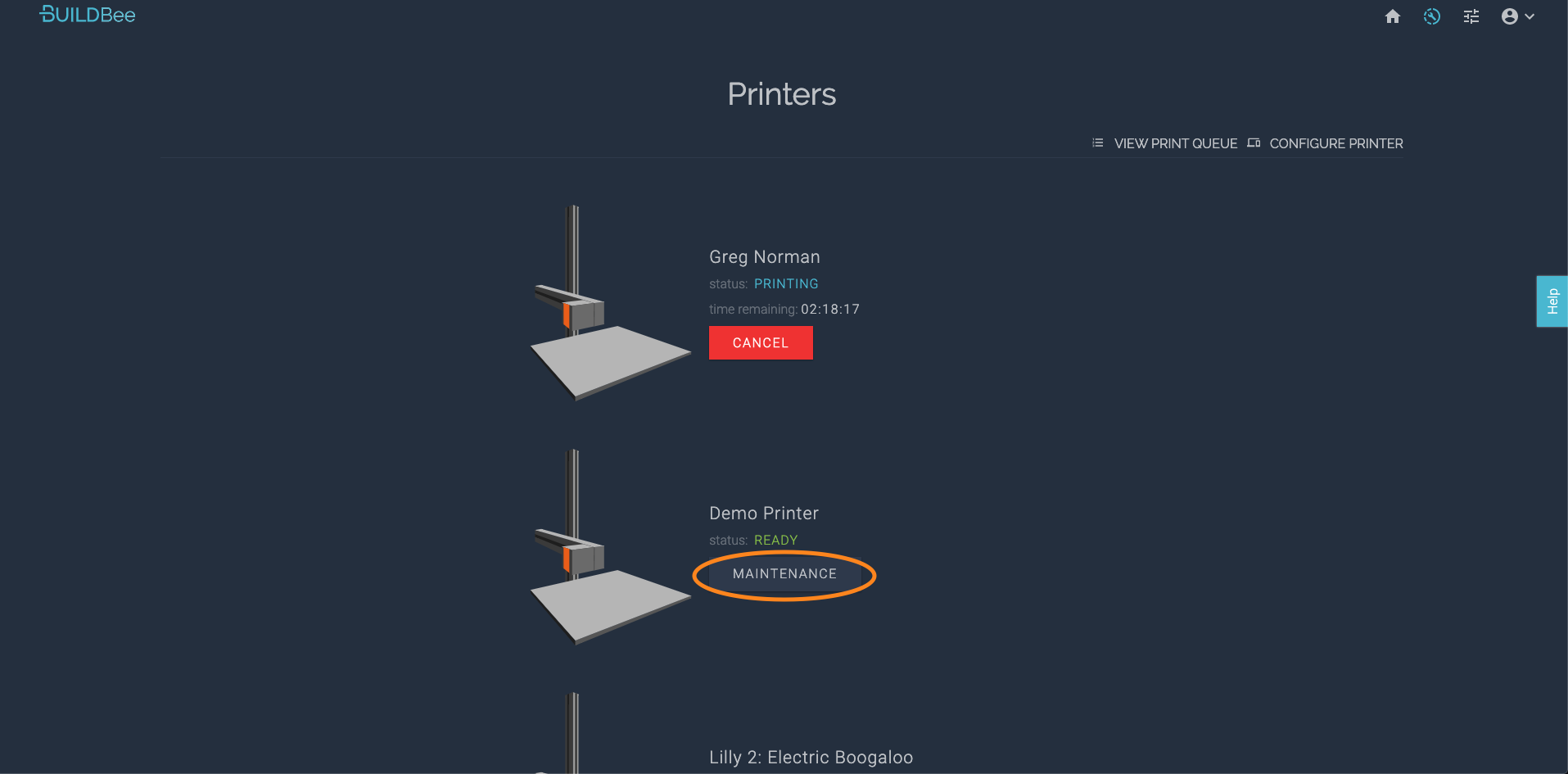

- Select the 'MAINTENANCE' button next to your printer.



- Access the GCODE terminal by selecting the 'MAINTENANCE' tab.



- Type M851 into the GCODE terminal and press enter. You will see a message like this:


- The default for the 'Probe Z Offset' number is 10. If the value that was returned from the M851 command deviates too much from the average (e.g. it returns 0 or 15 etc.), something may have gone wrong during the calibration process.


Step 2 - Reset the Z offset

- While still in the GCODE terminal, type M851 Z10 and press enter. This will tell the printer that the Z offset is now 10.


- To permanently store the new Z offset value, type M500 and press enter. You will see a message similar to the one below that tells you the setting was stored:


- To confirm that it’s all worked, type M501 and hit enter. This will load all of the printers settings in the GCODE terminal; at the end of the response, you should see the new M851 value (Z offset).


- Alternatively, you may upload this GCODE file to BuildBee in the 'Control' section of the maintenance console and let it run.


Step 3 - Re-calibrate your Z offset

Since this only returns the Z offset to a default value, you will still have to run a Z offset calibration to fine-tune your printer's performance.
Head over over to the Calibrating your Z-Offset for full instructions.
